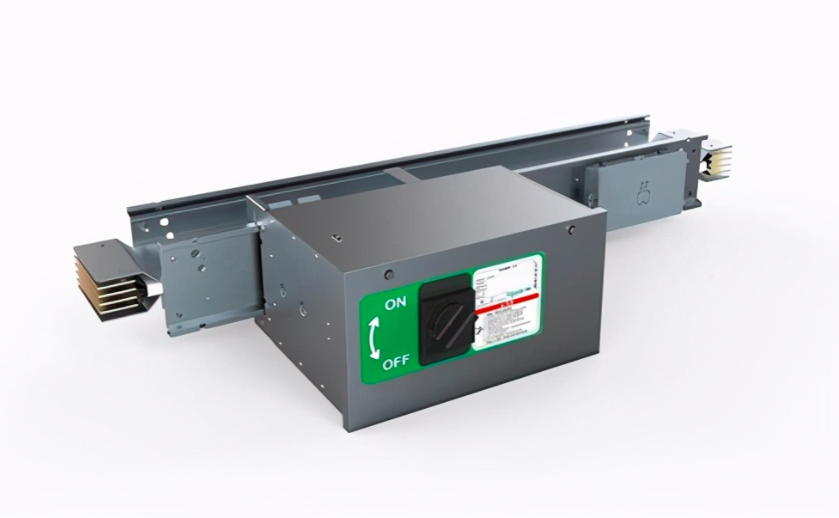

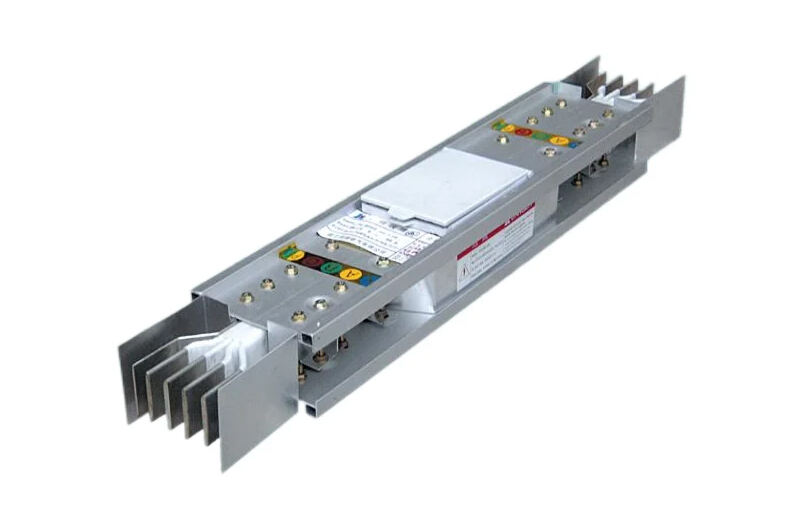

Schneider Electric BUSBAR（25-6300A）

Product descriptions from the supplier

Company Profile
LEX busway adopts high-quality aluminum-magnesium alloy type material as the shell, which is a non-magnetic environmental protection material, light weight, fast heat dissipation, and its large enough cross-section can replace the PE wire as 100% integral grounding, surface electrostatic powder coating, through 1200h salt spray experiment, can be used in the environment with high air humidity, high salinity and high pollution level for a long time.
The characteristics of short production cycle, controllable raw materials and high cost performance, and is deeply loved by many countries and regions.

Conductor

The busway system is tinned or silver-plated and wrapped in a high-performance insulating polyester film throughout the entire length.
The copper conductor should be rolled from national standard T2 electrolytic copper to make high-purity TMY electrical hard copper bar as a high conductivity material.
Comply with the standard GB5585-2005 copper, aluminum and its alloy busbars for electrical use;
The purity of copper is greater than 99.95%;

Insulating material - DuPont Polyester Film

Insulation Heat Resistance Class B (130°CC)；
The withstand voltage of the first layer can reach more than 10,000V；
No halides, no toxic gases at high temperatures；
The International IEC Association recommends high-performance professional electrical insulation；
Third-party certification reports are available。

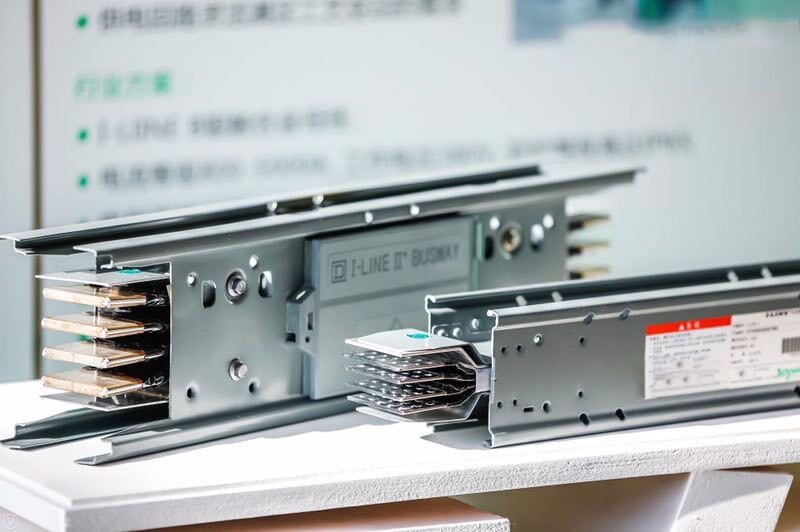

Connector

The connector has a high level of protection, and waterproof measures are designed between each component.

Telescopic joints

Stretchable connectors for compensating for deformation and vibration deformation of the bus due to temperature changes

Change the appearance of the festival

For two bus connections with different current ratings

Busway elbows are available in various shapes and can be customized

1、Horizontal L-Elbow (ER/EL)	2、Vertical L-Elbow (FO/FI)	3、T-Horizontal Elbow (TE)
4、Horizontal Z-Elbow (RL/LR)	5、Vertical Z-Elbow (IO/OI)	6、Special-shaped elbow (OL/IL)

Committed to Your Satisfaction
1、Generous Warranty Coverage
Enjoy peace of mind with a warranty spanning 3000 hours, starting from the date of shipment.
2、Rigorous Quality Assurance
Every unit undergoes 100% double inspection prior to shipping, ensuring flawless performance upon arrival.
3、Hassle-Free Warranty Service
Should any quality issue arise during the warranty period, we supply replacement parts free of charge.
4、Premium Quality Batteries
Each generator is equipped with high-performance batteries for reliable starting and long service life.
